论文专题讲解:DreamerV2:离散世界模型玩 Atari
- 论文:
Mastering Atari with Discrete World Models - 系统:
DreamerV2 - 链接:arXiv:2010.02193
- 项目页:danijar.com/dreamerv2
- 关键词:DreamerV2、discrete world model、categorical latent、KL balancing、straight-through gradient、Atari、model-based RL
DreamerV2 是 Dreamer 到 DreamerV3 之间的关键版本。DreamerV1 已经证明了可以在 RSSM 的 latent imagination 中训练 actor-critic,但主要成功集中在连续控制。DreamerV2 把这条路线推进到 Atari 这种更成熟、更竞争激烈的离散动作视觉基准上。
这篇论文最重要的结论是:一个单独训练的 world model,如果 latent dynamics 足够准确,也可以支撑 Atari 级别的 policy learning,而不只是服务连续控制或小规模视觉任务。
论文位置
DreamerV2 的改动不大,但位置很重要。
| 阶段 | 代表 | 关键问题 | 核心变化 |
|---|---|---|---|
| Latent planning | PlaNet | 从像素学 world model 后怎么选动作 | CEM 在 latent space 在线规划 |
| Latent imagination | DreamerV1 | 如何避免每步规划成本 | 在 imagined trajectories 上训练 actor-critic |
| Discrete world model | DreamerV2 | world model 能否打 Atari | categorical latent、KL balancing、Atari policy gradients |
| Generalist world model RL | DreamerV3 | 如何跨域固定超参 | 更稳健的表示、reward/value 标定和训练 recipe |
DreamerV2 仍然属于交互轨迹驱动的 latent dynamics 世界模型路线。它不是从大规模视频生成模型出发,而是从 agent 收集到的 Atari 交互数据中学习:
1 | image x_t, action a_t, reward r_t, discount gamma_t |

Figure source: Mastering Atari with Discrete World Models, Figure 1. 原论文图注要点:DreamerV2 在 55 个 sticky-action Atari games 的 gamer-normalized median score 上达到 human-level,并超过 Rainbow 和 IQN 等 single-GPU model-free baselines。
核心问题
在 DreamerV2 之前,world model 路线在 Atari 上一直不够有说服力。原因有三点:
- Atari 的视觉输入虽然低分辨率,但状态变化离散、非平滑,进入新房间、物体消失、敌人被击败等事件很难用连续 unimodal latent 表示。
- Model-free Atari 方法已经非常成熟,DQN、Rainbow、IQN 形成了强基线,world model 必须在同等计算预算下比较。
- 如果 learned dynamics 不够准,actor 会在 imagination 里学到模型漏洞,而不是可执行的游戏策略。
DreamerV2 的核心判断是:DreamerV1 的 Gaussian latent 对 Atari 这样的离散环境不是最合适。论文把 RSSM 的 stochastic state 换成多个 categorical variables,并配合 KL balancing,让 prior dynamics 更容易学准。
总体训练循环
DreamerV2 和 DreamerV1 的大框架一致:
1 | 从环境收集 Atari 交互数据,写入 replay dataset |
区别在于 DreamerV2 面向 Atari 做了几个关键替换:
| Component | DreamerV1 | DreamerV2 |
|---|---|---|
| Latent state | Gaussian stochastic latent | vector of categorical variables |
| Latent gradient | reparameterization | straight-through gradient |
| KL regularization | free nats | KL balancing |
| Action space | mostly continuous control | categorical action distribution for Atari |
| Actor gradient | dynamics backprop dominant in continuous control | Reinforce dominant for Atari |
| Exploration | external noise in continuous action | policy entropy regularization |
这说明 DreamerV2 不是简单把 DreamerV1 跑到 Atari 上,而是把 world model 表示、KL 训练方向和 policy gradient 估计都换成更适合离散环境的版本。
World Model 训练
DreamerV2 的 world model 仍然是 RSSM,但随机状态不再是 Gaussian,而是多个 categorical variables。

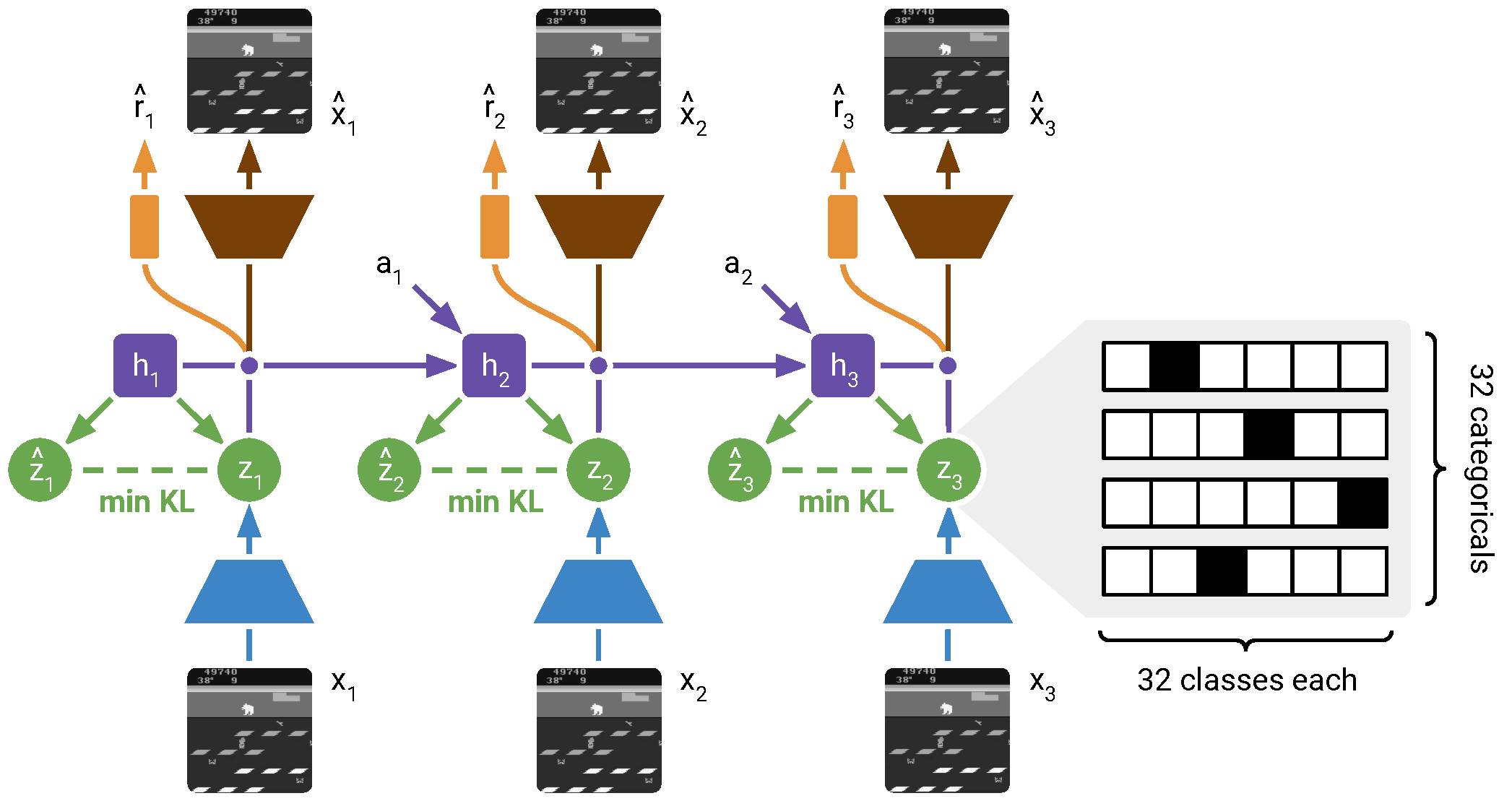

Figure source: Mastering Atari with Discrete World Models, Figure 2. 原论文图注要点:训练序列图像先由 CNN 编码;RSSM 维护 deterministic recurrent states ,每步计算看到当前图像的 posterior stochastic state ,以及不看当前图像、只靠历史预测的 prior stochastic state 。DreamerV2 的 stochastic state 是多个 categorical variables,训练好的 prior 会在 imagination 中使用。
图里的 posterior 和 prior 是 DreamerV2 world model 的核心。训练时 posterior 可以看到当前真实图像 ,所以它负责把观测编码进 latent state;prior 不能看当前图像,只能根据历史 recurrent state 预测下一步 latent。推理和 imagination 时没有未来图像,因此真正被 rollout 使用的是 prior。
KL loss 的作用就是让 prior 逐渐靠近 posterior:训练阶段借助真实观测校正状态,部署阶段靠 prior 自己往前想象。DreamerV2 把随机 latent 改成 categorical variables,是为了让 Atari 这类离散、事件驱动的环境更容易被 world model 表示。读这张图时要记住:posterior 是训练用的“带观测修正状态”,prior 是控制用的“无观测预测状态”。
数据与输入
world model 的训练数据来自 agent 不断增长的 replay dataset:
其中 是图像, 是动作, 是奖励, 是 discount factor。episode 内部 等于固定超参,terminal step 设为 0。Atari 实验使用 sticky actions、action repeat 4、完整动作空间、单任务训练、每个游戏一个 agent。
论文特别强调 DreamerV2 不使用 frame stacking,因为 RSSM 的 recurrent state 会自己整合时间信息。原始 Atari 灰度图像为 ,训练时下采样到 ,以复用 DreamerV1 的卷积架构。
模型组件
DreamerV2 的 world model 包含:
这里 是 posterior,训练时能看到当前图像; 是 prior,imagination 阶段只能用它往前 rollout。行为学习阶段不会生成图像,只使用 latent transition、reward predictor、discount predictor 和 critic。
Discrete Latents
DreamerV2 的随机状态是 32 个 categorical variables,每个 categorical 有 32 个 classes。展平后相当于长度 1024 的 sparse binary vector,其中有 32 个 active bits。
这对 Atari 有几个潜在优势:
| 可能原因 | 解释 |
|---|---|
| 多模态 prior 更容易拟合 | mixture of categoricals 仍是 categorical,Gaussian prior 很难拟合多峰 posterior |
| 离散事件更匹配 | Atari 中进房间、物体消失、敌人被击败等状态跳变天然离散 |
| 稀疏表示有助泛化 | 32-of-1024 sparse binary representation 可能比 dense Gaussian 更适合游戏状态 |
| straight-through 优化更稳定 | 论文推测 ST estimator 忽略某些会缩放梯度的项,可能缓解梯度爆炸或消失 |
categorical sample 用 straight-through gradient 训练。实现思想是:forward 用 one-hot sample,backward 用 softmax probabilities 的梯度。
1 | sample = one_hot(draw(logits)) |
这个技巧让离散 latent 在 forward 上保持离散,同时让自动微分系统把梯度传回 logits。
World Model Loss
DreamerV2 联合训练 image predictor、reward predictor、discount predictor、transition predictor 和 representation model:
各项作用如下:
| Loss term | Trains | Why it matters |
|---|---|---|
| image log loss | visual representation | 让 latent state 学到一般环境状态,不只对已见 reward 过拟合 |
| reward log loss | reward prediction | 支撑 imagination 中的 return estimate |
| discount log loss | termination / continuation | 让 imagined rollout 能软处理 episode ends |
| KL loss | prior and posterior alignment | 让 prior 在没有未来图像时能预测 posterior |
论文的消融非常明确:image gradients 对 world model 至关重要;reward gradients 不是必须,甚至停止 reward gradients 在一些任务上更好。这和 MuZero 类只靠 reward/value/policy 学任务特定 representation 的路线不同。DreamerV2 更强调从图像重建信号中学习一般环境状态。
KL Balancing
标准 KL 同时做两件事:
- 训练 prior 逼近 posterior;
- 正则 posterior 不要偏离 prior 太多。
问题是训练早期 prior 很弱,如果 KL 直接强压 posterior,posterior 可能为了贴近差 prior 而丢掉图像信息。DreamerV2 用 KL balancing 改变梯度方向权重:
Atari 中 。这相当于更快训练 prior,而不是主要通过增加 posterior entropy 来降低 KL。论文消融显示,KL balancing 对整体 Atari 表现贡献很大。
Behavior Learning
DreamerV2 在 world model 的 latent space 中训练 actor 和 critic。world model 在 behavior learning 阶段固定,不让 actor/value gradients 改写 representation。这样做的原因很实际:world model 应该先成为相对稳定的 environment surrogate,否则 actor 和 dynamics 会互相追逐。

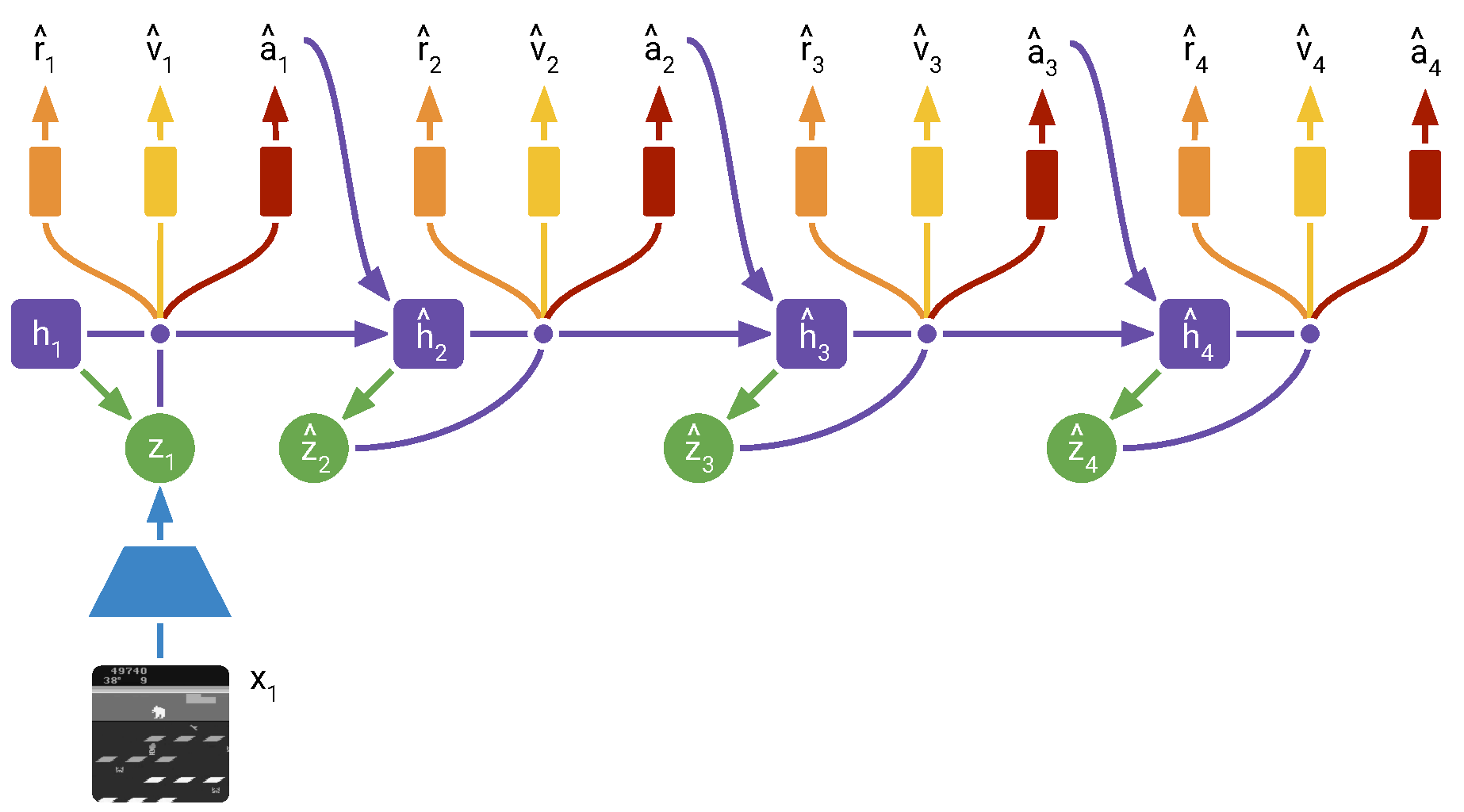

Figure source: Mastering Atari with Discrete World Models, Figure 3. 原论文图注要点:训练好的 world model 用于在 compact latent space 中想象 trajectories;trajectory 从 model training 中计算出的 posterior states 出发,由 actor 采样动作并通过 prior rollout,critic 预测每个 state 的未来 reward sum。actor 可用 Reinforce、straight-through dynamics gradients 或两者组合训练。
Imagination MDP
imagined trajectory 从 world model 训练阶段得到的 posterior model state 出发。之后模型不再看真实图像:
论文指出,DreamerV2 在单 GPU 上可以并行模拟约 2500 条 latent trajectories。因为 behavior learning 不生成图像,计算主要发生在 compact latent state 上。
Critic
critic 预测从当前 imagined latent state 出发的 expected future rewards:
目标使用 -target:
critic 用 squared loss 回归 stop-gradient target,并使用 slow critic target network,每 100 个 gradient steps 更新一次。这一点相比 DreamerV1 更像常规 deep RL 稳定化技巧。
Actor
DreamerV2 的 Atari actor 输出 categorical action distribution。actor loss 混合三类信号:
| Component | Meaning |
|---|---|
| Reinforce | unbiased but high-variance policy gradient |
| dynamics backprop | biased but low-variance straight-through gradient through world model |
| entropy regularizer | 鼓励可行位置的探索,同时允许需要精确动作时降低熵 |
论文最终设置对 Atari 很明确:Reinforce only 效果最好,因此使用 、。对于 continuous control,情况相反,dynamics backprop 更好,因此设置 。
这点很关键:DreamerV2 并没有教条地坚持“所有 actor 梯度都穿过 dynamics”。在离散 Atari 上,straight-through dynamics gradient 有偏,单独使用表现差;Reinforce 虽然方差高,但更适合最终 Atari policy optimization。
训练超参
论文给出的 Atari hyper parameters 如下,字段和值保留原格式。
| Name | Symbol | Value |
|---|---|---|
| World Model | ||
| Dataset size (FIFO) | — | |
| Batch size | 50 | |
| Sequence length | 50 | |
| Discrete latent dimensions | — | 32 |
| Discrete latent classes | — | 32 |
| RSSM number of units | — | 600 |
| KL loss scale | 0.1 | |
| KL balancing | 0.8 | |
| World model learning rate | — | |
| Reward transformation | — | |
| Behavior | ||
| Imagination horizon | 15 | |
| Discount | 0.995 | |
| -target parameter | 0.95 | |
| Actor gradient mixing | 1 | |
| Actor entropy loss scale | ||
| Actor learning rate | — | |
| Critic learning rate | — | |
| Slow critic update interval | — | 100 |
| Common | ||
| Policy steps per gradient step | — | 4 |
| MPL number of layers | — | 4 |
| MPL number of units | — | 400 |
| Gradient clipping | — | 100 |
| Adam epsilon | ||
| Weight decay (decoupled) | — |
表源:Mastering Atari with Discrete World Models,Appendix hyperparameters table。原论文表格要点:该表列出 DreamerV2 Atari 实验的 world model、behavior learning 和 common 超参;关键设置包括 32 x 32 categorical latent、KL balancing 、imagination horizon 15、actor gradient mixing 和 FIFO replay size 。
这些超参说明 DreamerV2 的训练重心很清楚:
- world model 需要足够大的 discrete latent 容量;
- prior learning 通过 KL balancing 被重点强化;
- actor 在 Atari 上主要靠 Reinforce,而不是 dynamics backprop;
- replay dataset 用 FIFO 限制到 ,避免无限增长;
- imagined states 数量远大于真实环境输入数量,论文报告 200M environment steps 中从 world model imagination 学习了 468B compact states。
实验结果
DreamerV2 在 55 个 Atari games 上评估,使用 sticky actions、200M environment steps、单 GPU、单 environment instance。论文把 DreamerV2 和 IQN、Rainbow、C51、DQN 对比。

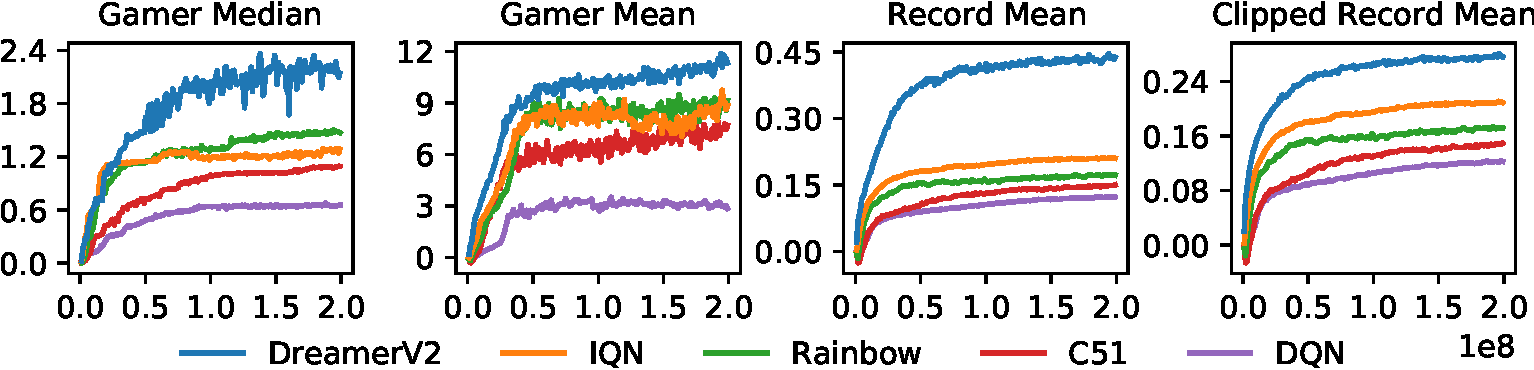

Figure source: Mastering Atari with Discrete World Models, Figure 4. 原论文图注要点:该图展示 200M steps 的 Atari 表现,并比较四种聚合指标。论文认为 gamer median 和 gamer mean 都可能被特定任务分布扭曲,因此推荐 clipped record normalized mean 作为更稳健的 Atari 汇总指标。
Table 1 reports Atari performance at 200M steps.
| Agent | Gamer Median | Gamer Mean | Record Mean | Clipped Record Mean |
|---|---|---|---|---|
| DreamerV2 | 2.15 | 11.33 | 0.44 | 0.28 |
| DreamerV2 (schedules) | 2.64 | 10.45 | 0.43 | 0.28 |
| IQN | 1.29 | 8.85 | 0.21 | 0.21 |
| Rainbow | 1.47 | 9.12 | 0.17 | 0.17 |
| C51 | 1.09 | 7.70 | 0.15 | 0.15 |
| DQN | 0.65 | 2.84 | 0.12 | 0.12 |
表源:Mastering Atari with Discrete World Models,Table 1。原论文表格要点:该表用 gamer-normalized、record-normalized 和 clipped record-normalized 指标比较 DreamerV2 与 IQN、Rainbow、C51、DQN;DreamerV2 在 200M steps、单 GPU 设置下整体超过这些 model-free baseline。
这张表支持三个结论。第一,DreamerV2 在四种聚合指标上都超过 model-free single-GPU baselines。第二,DreamerV2 schedules 可以提高 gamer median,但 clipped record mean 没变,所以论文主结果没有依赖复杂 schedule。第三,不同聚合方式会改变算法相对差距,因此论文建议用 clipped record mean 避免少数超高分游戏主导平均值。
消融实验
DreamerV2 的消融结果很适合理解“world model 到底靠什么训练成功”。

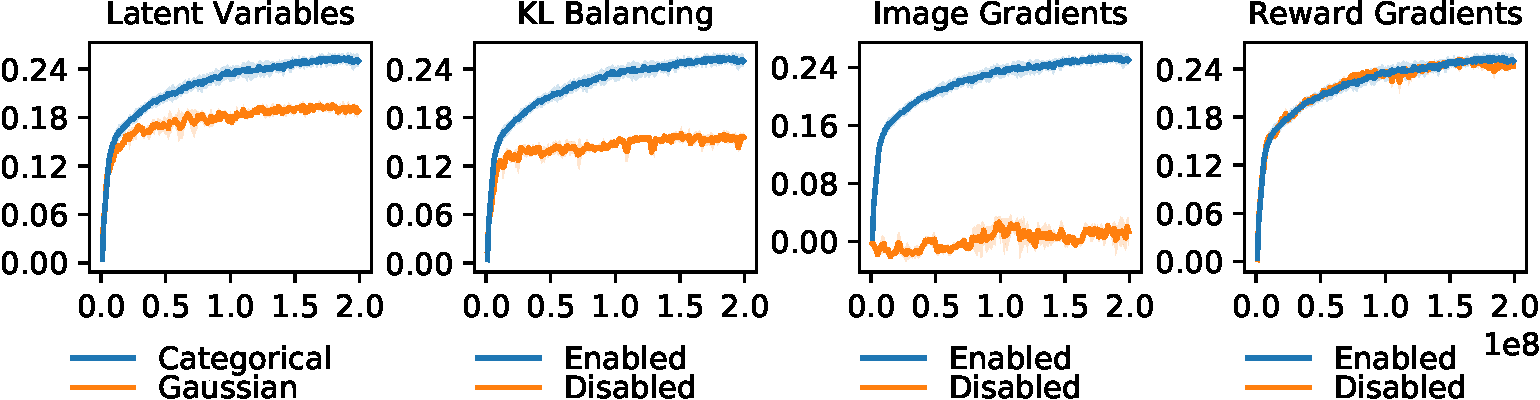

Figure source: Mastering Atari with Discrete World Models, Figure 5. 原论文图注要点:该图展示 DreamerV2 的主要消融,包括 categorical vs Gaussian latent variables、KL balancing、image gradients 和 reward gradients。结果突出 categorical latents、KL balancing 和 image gradients 的重要性。
Table 2 reports ablations to DreamerV2 measured by Atari performance at 200M frames.
| Agent | Gamer Median | Gamer Mean | Record Mean | Clipped Record Mean |
|---|---|---|---|---|
| DreamerV2 | 1.64 | 11.33 | 0.36 | 0.25 |
| No Layer Norm | 1.66 | 5.95 | 0.38 | 0.25 |
| No Reward Gradients | 1.68 | 6.18 | 0.37 | 0.24 |
| No Discrete Latents | 1.08 | 3.71 | 0.24 | 0.19 |
| No KL Balancing | 0.84 | 3.49 | 0.19 | 0.16 |
| No Policy Reinforce | 0.69 | 2.74 | 0.16 | 0.15 |
| No Image Gradients | 0.04 | 0.31 | 0.01 | 0.01 |
表源:Mastering Atari with Discrete World Models,Table 2。原论文表格要点:该表通过移除 layer norm、reward gradients、discrete latents、KL balancing、policy Reinforce 和 image gradients 来定位 DreamerV2 的关键设计;No Image Gradients 和 No KL Balancing 的明显退化说明视觉重建与 prior/posterior 对齐对 Atari world model 训练很重要。
这张表的含义非常直接:
| Ablation | Interpretation |
|---|---|
| No Discrete Latents | categorical latent 是 Atari 表现提升的核心来源之一 |
| No KL Balancing | prior dynamics 学不准会直接伤害 imagination policy learning |
| No Policy Reinforce | Atari actor 主要依赖 Reinforce,而不是纯 dynamics backprop |
| No Image Gradients | world model 不能只靠 reward,图像重建提供了关键 representation signal |
| No Reward Gradients | reward-specific representation 不是必须,停止 reward gradients 几乎不伤害 clipped record mean |
最有启发的是 No Image Gradients 和 No Reward Gradients 的对比。DreamerV2 不是靠 reward 把 latent state 变成 task-specific representation,而是靠 image reconstruction 学一般环境状态,再在 latent imagination 中学习 policy。这个结论也解释了为什么 DreamerV2 和 MuZero 的世界模型训练哲学不同。
和 MuZero / SimPLe 的关系
论文还给出 conceptual comparison,字段和值保留原格式。
| Algorithm | Reward Modeling | Image Modeling | Latent Transitions | Single GPU | Trainable Parameters | Atari Frames | Accelerator Days |
|---|---|---|---|---|---|---|---|
| DreamerV2 | ✓ | ✓ | ✓ | ✓ | 22M | 200M | 10 |
| SimPLe | ✓ | ✓ | ✗ | ✓ | 74M | 4M | 40 |
| MuZero | ✓ | ✗ | ✓ | ✗ | 40M | 20B | 80 |
| MuZero Reanalyze | ✓ | ✗ | ✓ | ✗ | 40M | 200M | 80 |
表源:Mastering Atari with Discrete World Models,conceptual comparison table。原论文表格要点:该表把 DreamerV2、SimPLe、MuZero 和 MuZero Reanalyze 按 reward modeling、image modeling、latent transitions、单 GPU 可训练性、参数量、Atari frames 和 accelerator days 对齐比较,用来说明 DreamerV2 处在 image-trained latent world model 路线。
这个表很适合用来区分三条路线:
| Route | Representative | Key idea |
|---|---|---|
| Full image world model | SimPLe | 在像素或图像空间建模环境,但效率和长期误差压力大 |
| Task-specific latent model | MuZero | 学 reward/value/policy 相关 latent dynamics,不做 image reconstruction |
| General image-trained latent world model | DreamerV2 | 用图像重建训练一般 latent state,再用 latent transitions 学 policy |
DreamerV2 的路线介于两者之间。它不像 SimPLe 那样在行为学习中依赖图像生成,也不像 MuZero 那样只从 reward/value/policy 信号学任务特定模型。它用图像预测塑造 latent representation,但 actor-critic 学习只在 compact latent space 中发生。
和 DreamerV3 的关系
DreamerV3 可以看作把 DreamerV2 的一些经验推广成更通用的跨域 recipe:
| Design | DreamerV2 | DreamerV3 |
|---|---|---|
| Latent type | categorical latent | categorical latent 继续保留 |
| KL training | KL balancing | 拆成 dynamics / representation losses,并配合 free bits |
| Reward scale | tanh reward for Atari | symlog + twohot 处理跨域数值尺度 |
| Value learning | scalar critic with target network | distributional critic / twohot return target |
| Goal | solve Atari competitively | fixed hyperparameters across many domains |
所以 DreamerV2 的价值不只是 Atari 分数,而是证明了 discrete latent world model 是一条可行路线。DreamerV3 后续把这条路线从 Atari 扩展到更多环境,并解决跨域稳定性问题。
局限与风险
DreamerV2 仍有清楚的边界。
- 单任务训练。每个 Atari game 都训练独立 agent,不是一个多任务或通用 Atari world model。
- 仍依赖大量环境步数。200M environment steps 和 10 天单 V100 不是小成本,只是相对 MuZero 这类设置更可复现。
- reconstruction loss 可能忽略关键小物体。论文特别提到 Video Pinball,关键 ball 只有一个像素,图像重建未必强迫 latent 表示关注它。
- Atari actor 使用 Reinforce 为主,说明通过离散 world model 直接 dynamics backprop 训练 policy 仍有偏差问题。
- 视觉世界复杂度仍有限。Atari 远不是开放真实世界,DreamerV2 不能直接代表视频世界模型路线。
阅读结论
DreamerV2 最值得记住的是三点:
- categorical latent variables 是让 RSSM 更适合 Atari 离散动态的关键改动;
- KL balancing 让 prior dynamics 更快追上 posterior,直接服务 imagination rollout;
- image reconstruction gradients 对 world model representation 至关重要,而 reward gradients 不是核心。
一句话总结:DreamerV2 证明了交互轨迹驱动的 latent dynamics 世界模型不仅能做连续控制,也能在 Atari 这种强基准上训练出竞争力 policy。它把 DreamerV1 的 latent imagination actor-critic 推进到离散状态、离散动作和强 model-free baseline 对抗的阶段,为 DreamerV3 的通用化 recipe 铺好了路。
